Lighting Columns

Lighting Columns & Brackets

Lighting Project Solutions can provide exactly the right lighting columns to suit your requirements. We have access to large stocks of conical, tubular and hinged columns from 3m to 12m along with brackets to suit. We also offer the option painting in any RAL colour.

You may find our selection of projects below.

Lighting Columns

Tubular Column

Tubular Column

Heavy Duty Tubular Column

Heavy Duty Tubular Column

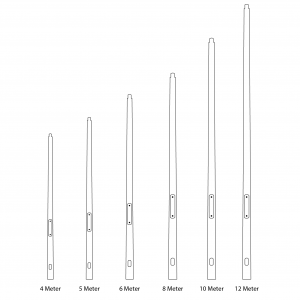

Conical

Conical

Raise and Lower

Raise and Lower

Sports Pole- Fixed

Sports Pole- Fixed

Sports Pole - Raise and Lower

Sports Pole - Raise and Lower

Lighting Brackets

Bracket 1

Bracket 1

Single post top adapter bracket reduced to 60mm. Hot dip galvanised finish. Available with 89mm 114mm and 140mm pot sizes.
Bracket 2

Bracket 2

Single 200mm outreach Wall bracket to suit 60mm side entry luminaire. Hot dip galvanised finish.
Bracket 3

Bracket 3

Single 200mm outreach bracket to suit 60mm side entry luminaire. Hot dip galvanised finish. Available with 89mm 114mm and 140mm pot sizes.
Bracket 4

Bracket 4

Twin 200mm outreach bracket to suit a 60mm side entry luminaire. Hot dip galvanised steel finish. Available with 89mm 114mm and 140mm pot sizes.
Bracket 5

Bracket 5

Twin parallel bracket to suit a 60mm side entry luminaire. Hot dip galvanised steel finish. Available in 89mm 114mm and 140mm pot sizes.
Bracket 6

Bracket 6

Triple parallel bracket to suit a 60mm side entry luminaire. Hot dip galvanised finish. (2 x parallel mounted on one side and 1 x the opposite direction).Available in 89mm 114mm and 140mm pot sizes.
Bracket 7

Bracket 7

Single floodlight bracket to accept stirrup mounted fittings. 89mm pot to suit 76mm spigot. Hot dip galvanised finish. Available with 89mm 114mm and 140mm pot.
Bracket 8

Bracket 8

Twin floodlight bracket to accept stirrup mounted fittings. Hot dip galvanised finish. Available with 89mm 114mm and 140mm pot sizes.
Bracket 9

Bracket 9

Triple floodlight bracket to accept stirrup mounted fittings. Hot dip galvanised finish. Available with 89mm 114mm and 140mm pot.

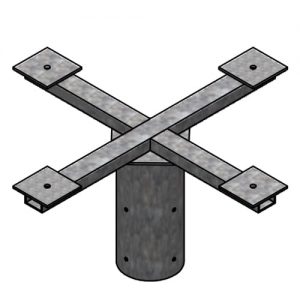

Bracket 10

Bracket 10

Quad floodlight bracket to accept stirrup mounted fittings. Hot dip galvanised finish.. (2 up 2 down Configuration) Available with 89mm 114mm and 140mm pot.
Bespoke Brackets

Bespoke Brackets

If you’re looking for a special bracket that you can’t see here, we can make specials to suit your requirements. Please speak to one of the team who will be happy to assist.

Find out more by contacting us on our Contact Page.
